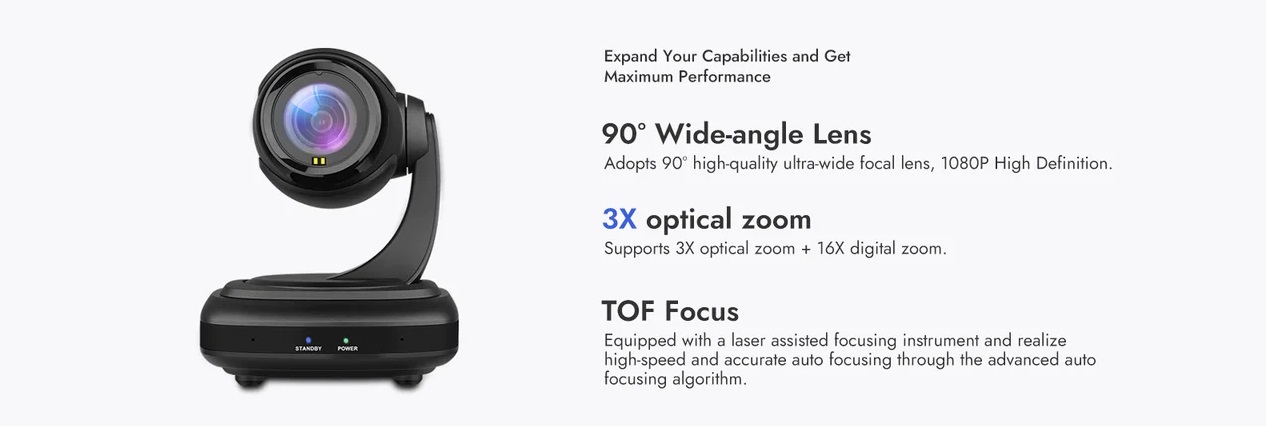

Camera

• Sensor:1/2.9'', CMOS, Max Effective Pixel 2.07M
• Scanning Mode:Progressive

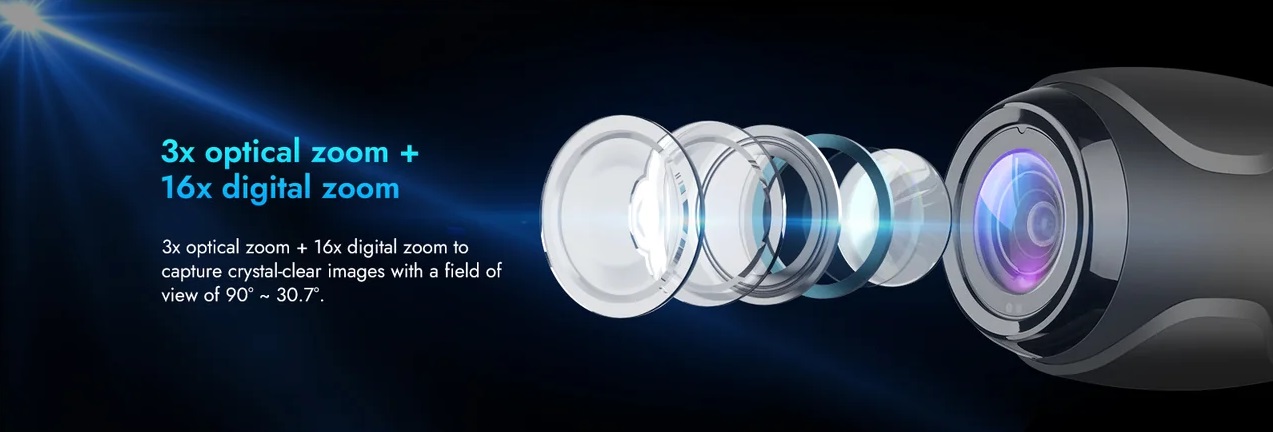

• Lens :3X, f3.35mm ~ 10.05mm, F1.7 ~ F3.0
• Digital Zoom:16x
• Minimal Illumination:0.5Lux @ (F1.8, AGC ON)
• Shutter:1/30s ~ 1/10000s
• White Balance:Auto, Indoor, Outdoor, One Push, Manual,VAR
• Backlight Compensation :Support
• Digital Noise Reduction: 2D&3D Digital Noise Reduction
• S/N :≥55dB
• Horizontal Angle of View:90° ~ 30.7°
• Vertical Angle of View:52° ~ 18.4°
• Horizontal Rotation Range:±170°
• Vertical Rotation Range :-30° ~ +90°
• Pan Speed Range:2.7° ~ 35.7°/s
• Tilt Speed Range:2.7° ~ 31.5°/s
• H & V Flip:Support
• Image Freezing:Support
• Number of Preset:255
• Preset Accuracy:0.1°

Input/output Interface

• USB Interface:1xUSB 2.0, Type-C
• Audio Input:Built-in dual Mics
• Communication Interface:1xRS232 In
• Power Jack:JEITA (DC IN 12V) /USB Type-C (DC IN 5V)

USB Features

• Operating System:Windows 7, Windows 8, Windows 10,Windows 11, Mac OS X, Linux, Android
• Color System / Compression:YUY2 / MJPEG
• Video Format:YUY2 (Isochronous mode) Max 640x480P30；MJPEG Max 1920x1080P30
• Audio on USB:Support
• USB Video Communication Protocol:UVC 1.1
• UVC PTZ Control:Support

Generic Specifications

• Input Voltage: DC 12V/ USB 5V
• Input Current: 12V 1.0A(Max)/5V 1A(Max)
• Operating Temperature: -10°C ~ 40°C
• Storage Temperature:-40°C ~ 60°C
• Power Consumption:12W（Max）
• Size: 144mm x 144mm x 167.9mm
• Net Weight:0.444kg
