    RC03
    Video Conference Camera,

    Rocware RC03 4K Multiple Tracking Modes Teaching Camera, ePTZ, autofocus. PoC and PoE

    RC03 is equipped with 4K Sensor and lens to achieve high-definition e-PTZ. Built-in advanced image recognization and tracking algorithm to achieve a smooth and natural tracking effect without any extra positioning camera or tracking host. Different lens are used to achieve teacher tracking or student tracking.

    Download file

    Rocware RC03 4K Multiple Tracking Modes Teaching Camera, ePTZ, autofocus. PoC and PoE

    RC03 is equipped with 4K Sensor and lens to achieve high-definition e-PTZ. Built-in advanced image recognization and tracking algorithm to achieve a smooth and natural tracking effect without any extra positioning camera or tracking host. Different lens are used to achieve teacher tracking or student tracking.

    42° lens with auto focus is used on teacher tracking camera, which can better capture the teacher's handwriting on the blackboard.low distortion lens is used on student tracking camera, horizontal field of view is up to 95° to capture the complete classroom scene. Also support EPTZ, which can be seen more clearly when zoom in.

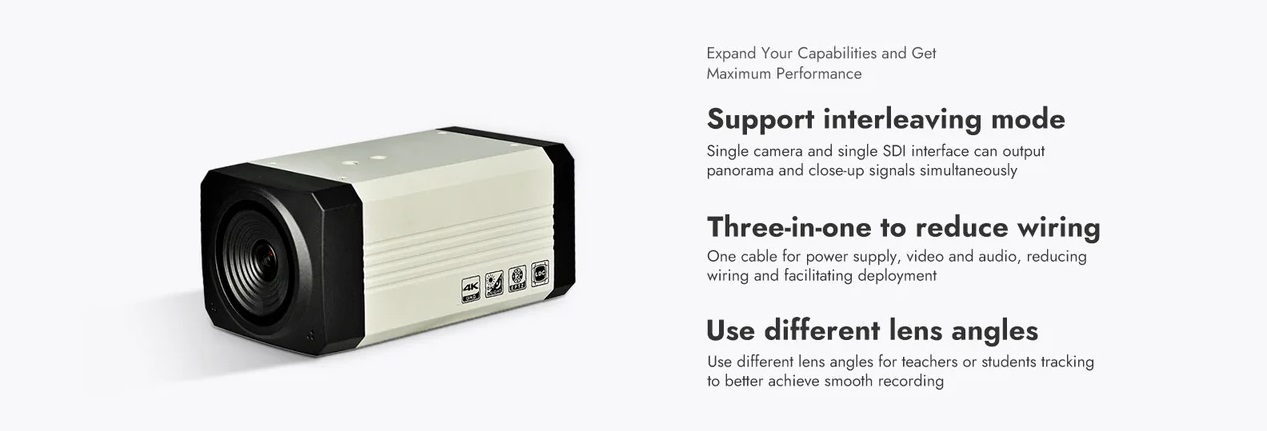

    Single camera and single SDI interface can output panorama and close-up signals simultaneously.



    Specifications

    Camera

    • Sensor:1/2.8'', CMOS, Effective Pixel 8.46M
    • Scanning Mode:Progressive
    • Lens Mount:M12
    • Lens1(teacher):Focus f=7.2mm, HFOV: 42°
    • Lens2(student):Focus f=2.8mm, HFOV: 95°
    • Auto Focus:Support Lens teacher
    • Minimal Illumination:0.5 Lux @ (F1.8, AGC ON)
    • Shutter:1/30s ~ 1/10000s
    • White Balance:Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
    • Digital Noise Reduction:2D&3D Digital Noise Reduction
    • Backlight Compensation:Support
    • EPTZ:Support
    • Digital zoom :8x
    • PoE:Support
    • Lens 1 / 2 :Teacher mode / Student mode

    Input/Output Interface

    • HD Output:1x 3G-SDI
    • USB Interface:1xUSB 2.0, type A
    • Network Interface:1xRJ45 10M/100M/1000M Ethernet Interface, PoE Support
    • Audio Interface:1x line in
    • Control Interface:1xRS485
    • Power Jack:Type DC005（DC 12V）

    Network Features

    • Video Compression: H.264 / MJPEG
    • Video Stream:The first, second, third, fourth stream
    • The First Stream:1920x1080, 1280x720, 1024x576, 960x540, 640x480,640x360,352x288
    • The Second Stream :3840x2160, 1920x1080,1280x720,1024x576,720x576, 720x408,640x360,480x272,320x240,320x180
    • The Third Stream:1920x1080, 1280x720,1024x576,960x540,720x576,720x408,640x480,640x360,480x272,320x240,320x180
    • The Fourth Stream:1920x1080, 1280x720,1024x576,960x540,720x576,720x408,640x480,640x360,480x272,320x240,320x180
    • Video Bit Rate:32Kbps ~ 16384Kbps
    • Bit Rate Type:Variable Rate, Fixed Rate
    • Frame Rate: 1fps ~ 30fps
    • Audio Compression:AAC,G711A
    • Audio Bit Rate :96Kbps、128Kbps、256Kbps
    • Support protocols: TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

    General specification

    • Input Voltage:DC 12V / PoE (802.3af)/PoC
    • Input Current:0.5A（Max）
    • Operating Temperature:-10°C ~ 40°C
    • Storage Temperature:-40°C ~ 60°C
    • Power Consumption:6W（Max）
    • Dimension:72mm x 60mm x 130mm
    • N.W.:0.37kg
