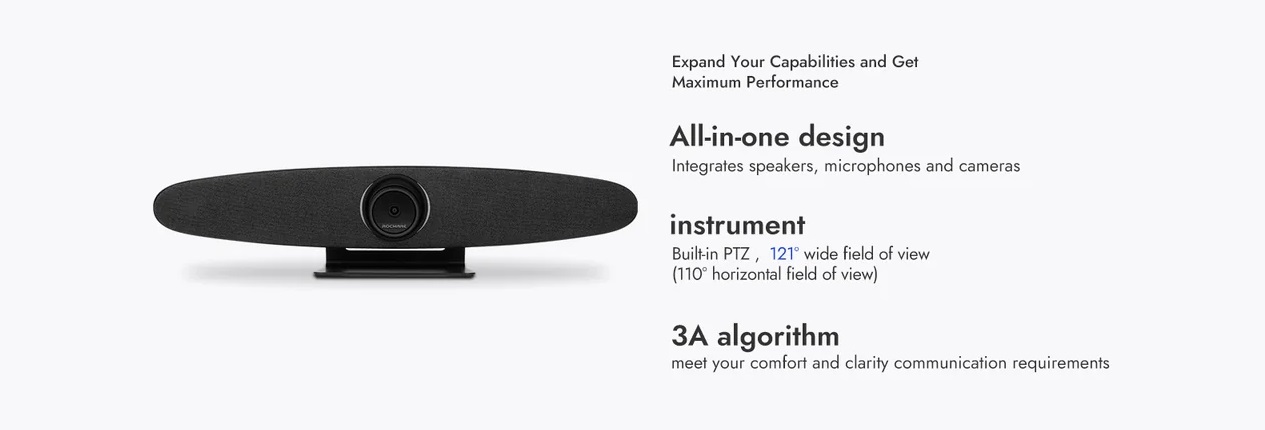

RC10 is equipped with a 1/2.5-inch, 8.51 megapixel high-quality UHD CMOS sensor, which can output 4K (3840x2160)@30fps Ultra high definition image, downward compatible with 1080P, 720P and other resolutions. Meet users needs for different video experiences. It is specially designed for small and medium-sized conference rooms, especially the Huddle Room for 4 to 6 people.
Specifications
Camera
- Video Resolution:4K/30, 1080P/30, 720P/30 etc

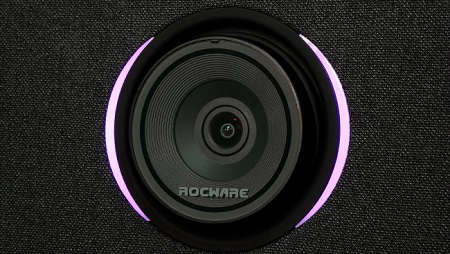

- Sensor:1/2.5 inches, CMOS, Effective Pixels
- Lens:121° (DFOV), 110° (HFOV), 75° (VFOV), 5x digital zoom,Horizontal/pitch ±15°
- Tripod Head:Mechanical PTZ (MPT) + e-PTZ (EPTZ)
- Digital Noise Reduction :2D & 3D Digital Noise Reduction
- S/N Ratio:≥ 55dB
- Backlight Compensation :Support
USB Features
- Type of Connection :USB 3.0, backward compatible with USB 2.0
- Color System / Compression: MJPEG /YUY2
- USB Audio:32K sampling rate, UAC1.0 support
- USB Video Communication Protocol:UVC 1.1
- UVC PTZ Control:Support
Other
- Installation Method:A variety of installation options supported, including desktop placement, wall mounting, installation with wall-mounted TV, etc.
- Supplied Cables:USB Cable
- Safety Protection:Kensington Lock
Audio
- Full-Frequency Speaker:96 dB SPL at 0.5 m
- Microphone Array:Beamforming microphone with a pickup distance of 6m
- Expansion MIC:Support (Optional)
I/O Interface
- HD Output:1 x HDMI, Version 1.4b
- USB Interface:1 x USB3.0, Type C; 1 x USB2.0, Type A
- Wireless:Bluetooth data communication (Bluetooth 5.0)
General Specifications
- Power Supply:DC 12V, 2A (Max.)
- Operating Temperature:0° C ~ 40° C
- Storage Temperature:40° C ~ 60° C
- Size:601mm x 141mm x 115mm
- Net weight:2.5 Kg
