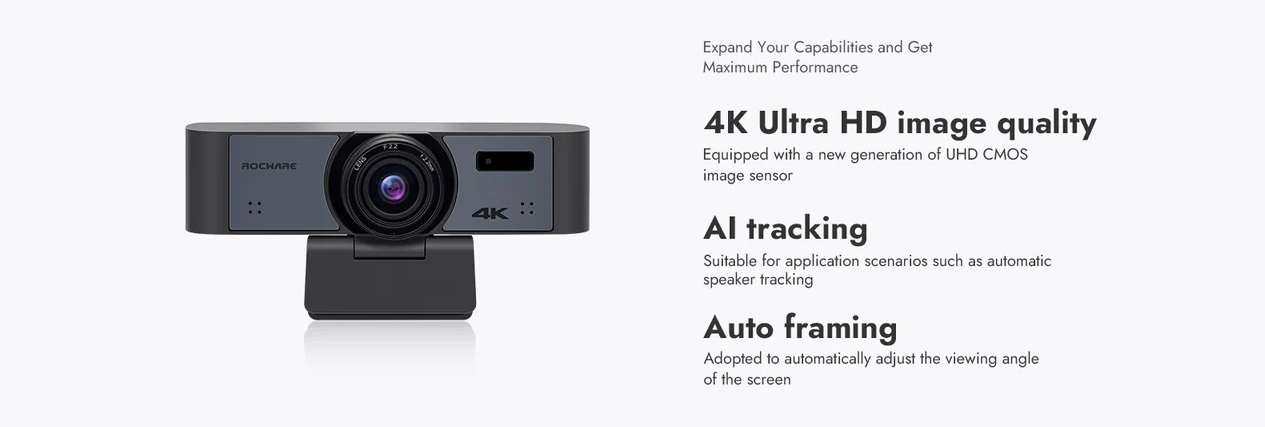

RC16 is equipped with a new generation of UHD CMOS image sensor, with more accurate native resolution and richer color information. With a 110°ultra-large viewing angle and low-distortion 4K lens, the panoramic field of view is unobstructed. Support Auto framing and AI tracking.
Specifications
Camera
- Sensor:1/2.7'', CMOS, Effective Pixel 8.29M
- Scanning Mode:Progressive
- Lens Mount:M12
- Lens Focus: f=2.2mm, FOV
- Minimal Illumination:0.5 Lux @ (F1.8, AGC ON)
- Shutter:1/30s ~ 1/10000s
- White Balance:Auto, Indoor, Outdoor, One Push, Manual
- Camera bracket:Standard damping rotating bracket
- Digital Noise Reduction:2D,3D digital noise reduction
- Backlight Compensation:Support
Input/Output Interface
- USB Interface:1xUSB 3.0，Type-C
- Infrared remote control:Support
USB Features
- Operate System:Windows® 7 (1080p or below), Windows 8.1, Windows 10 or higher ;macOS™ 10.10 or higher;Google™ Chromebook™ Version 29.0.1547.70 or higherLinux (need support UVC)
- HarHardware Requirement:2.4 GHz Intel® Core 2 Duo processor or higher;2 GB RAM or more;USB 2.0 interface（4K requires USB 3.0）
- Color System / Compression:H.264 / MJPEG /YUY2
- Video Format:4k@30fps/25fps, 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps,
- USB Video Communication Protocol:UVC 1.1
- UVC PTZ control:Support (EPTZ)
General specification
- Input Voltage:5V (USB power supply)
- Input Current:600mA(MAX)
- Operate Temperature:0°C ~ 40°C
- Storage Temperature:-40°C ~ 60°C
- Power consumption:3.0W(MAX)
- Size:118mm x37.2mm x 30.8mm（Without stand）
- Net Weight: 0.2 Kg
