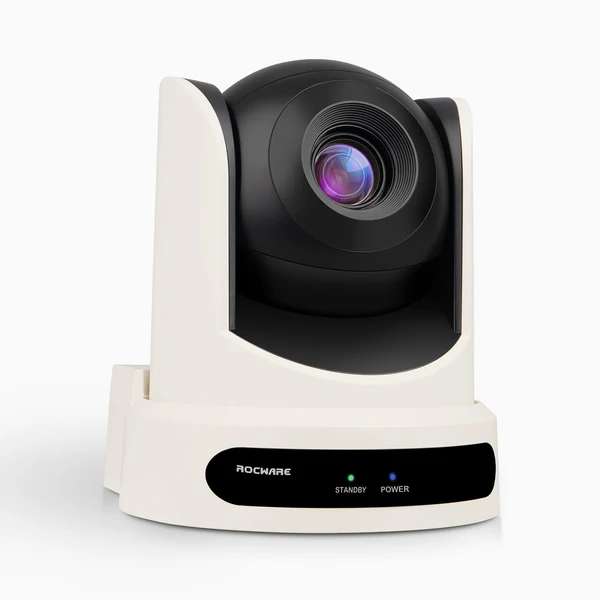

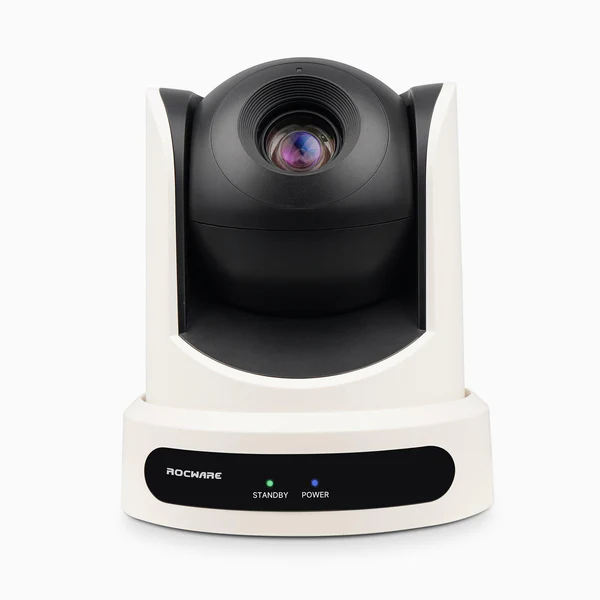

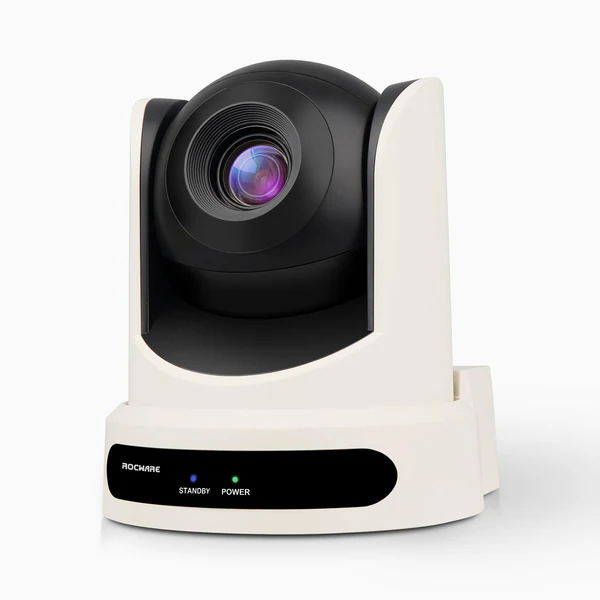

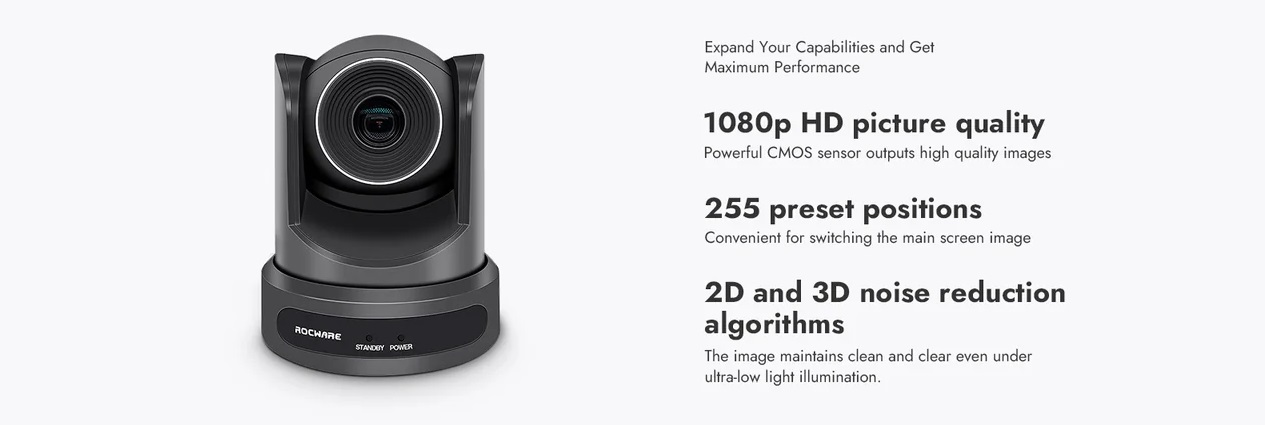

Rocware RC20 1080P HD PTZ USB Camera
Rocware RC20 is a new professional Full HD Broadcast and Conference PTZ Camera.It has 10X lossless optical zoom+16X Digital Zoom with 1/2.7 inch high quality HD CMOS sensor.Support smart auto focus , easy to use.High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm allows it to keep the picture clean and clear in an Low-light environment of 0.5 Lux.And support UVC,VISCA/Pelco-D/Pelco-P protocols etc.Is a cost-effective choice for Live Streaming,Broadcast,Conference,Events,Church and School...
Specifications
Camera
- Video System:1080P, 720P, 540P, 480P, 360P, 240P etc. according to different resolution for different color space/compression modes.
- Sensor:1/2.7'', CMOS, Effective Pixel
- Scanning Mode:Progressive
- Lens :10x, f4.7mm ~ 46.3mm, F1.8 ~ F2.8
- Digital Zoom:16x
- Minimal Illumination:0.5 Lux @ (F1.8, AGC ON)
- Shutter:1/30s ~ 1/10000s
- White Balance:Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
- Backlight Compensation:Support
- Digital Noise Reduction:2D&3D Digital Noise Reduction
- Video S/N:≥55dB
- Horizontal Angle of View :58.5° ~ 6.5°
- Vertical Angle of View:35.1° ~ 3.6°
- Horizontal Rotation Range :±170°
- Vertical Rotation Range: -30°~ + 90°
- Pan Speed Range :2.7° ~ 47°/s
- Tilt Speed Range :3.4° ~ 30°/s
- H & V Flip:Support
- Image Freeze:Support
- Number of Preset :255
- Preset Accuracy :0.1°

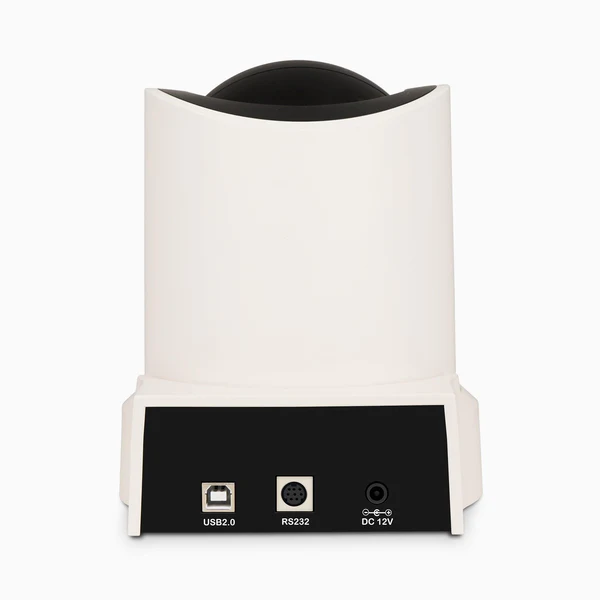

Input/Output Interface
- USB Interface:1xUSB2.0
- Communication Interface:1xRS232 In
- Power Jack:JEITA type (DC IN 12V)/USB B type（DC IN 5V）
USB Featured
- Operate System:Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
- Color System / Compression:YUV 4
- Video Format:H.264 AVC
- USB Video Communication Protocol:UVC 1.0
- UVC PTZ:Support
Generic Specification
- Input Voltage:DC 12V
- Current Consumption:1.0A (Max)
- Operating Temperature:-10°C ~ 40°C (14°F ~ 104°F)
- Storage Temperature:-40°C ~ 60°C (-40°F ~ 140°F)
- Power Consumption:12W (Max)
- MTBF:>30000h
- Size:141.3mm x 153mm x 163.6mm
- Net Weight:1.153 KG
