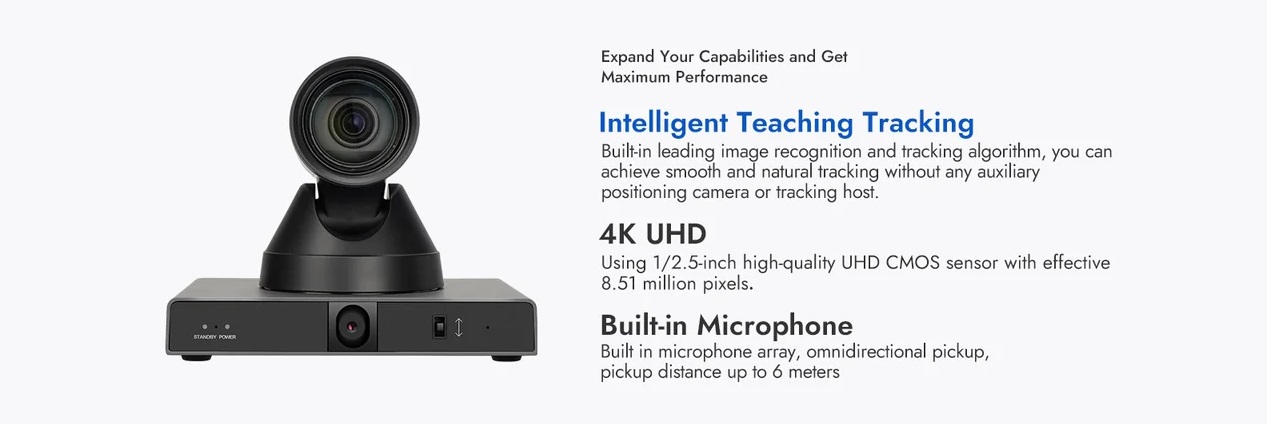

RC55 UHD Integrated Tracking Camera
4K UHD: Using a 1 / 2.5 inch high-quality UHD CMOS sensor with a maximum size of 8.51 million pixels, it can achieve 4K (3840x2160) high-resolution high-quality images. And backward compatible with multiple resolutions such as 1080P, 720P.
All-in-One Design: Integrated design, can output panoramic and close-up multi-channel HD video at the same time
Specifications
Close-up camera
- Video System / HDMI ：4K@30fps, 4K@25fps, 4K@29.97fps1080P@30fps,1080P@25fps SDI ：1080P@30fps,1080P@25fps
- Sensor : 1/2.5'', CMOS, Effective Pixel: 8.51M
- Scanning Mode : Progressive
- Lens : 12X, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
- Digital zoom : 16X
- Minimal Illumination : 0.5Lux @ (F1.8, AGC ON)
- Shutter : 1/30s ~ 1/10000s
- White Balance : Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
- Backlight Compensation : Support
- Digital Noise Reduction : 3D Digital Noise Reduction
- Video S/N : ≥55dB
- Horizontal Angle of View : 71° ~ 8.2°
- Vertical Angle of View : 42.7° ~ 4.5°
- Horizontal Rotation Range : ±170°
- Vertical Rotation Range : ±30°
- Pan Speed Range : 1.61° ~ 75.56°/s
- Tilt Speed Range : 0.44° ~ 15°/s
- H & V Flip : Support
- Image Freeze : Support
- Number of Preset : 255
- Preset Accuracy : 0.1°
Panorama Camera
- Video System / HDMI：4K@30fps, 4K@25fps, 4K@29.97fps1080P@30fps,1080P@25fps SDI：1080P@30fps,1080P@25fps
- Sensor : 1/2.8'', CMOS, Effective Pixel : 8.42M
- Scanning Mode : Progressive
- Lens Mount : M12 Mount
- Lens Type one : f=8mm,H FOV 48°(default, changeable) Lens Type two : f=1.97mm,H FOV 107°(default, changeable)
- Minimal Illumination : 0.5 Lux @ (F1.8, AGC ON)
- Shutter : 1/30s ~ 1/10000s
- White Balance : Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
- Digital Noise Reduction : 3D digital noise reduction
- Backlight Compensation : Support
- Image Freeze : Support
- H & V Flip : Support
USB Featured
- Operate System : Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux
- Color System / Compression : YUV / H.264 / MJPEG /NV12
- Video Format : YUY2 : Max to 1080P@30fps H.264 AVC: Max to 2160P@30fps H.264 SVC: Max to 2160P@30fps MJPEG: Max to 2160P@30fps
- Audio on USB : Support
- USB Video Communication Protocol : UVC 1.1~1.5
- UVC PTZ : Support
Network Features
- Video Compression : H.264/MJPEG
- Video Stream : First Stream, Second Stream
- First Stream Resolution : 3840x2160,1920x1080,1280x720,1024x576,720x480,720x408,640x480,640x360
- Second Stream Resolution : 720x480,720x408,640x360,480x320,320x240
- Video Bit Rate : 32kbps~51200kbps
- Bit Rate Type : Variable Rate, Fixed Rate
- Frame Rate : 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
- Audio Compression : AAC、G711A
- Audio Bit Rate : 48Kbps, 64Kbps, 96Kbps, 128Kbps
- Support protocols : TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,GB/T28181, Multicast, etc.
Input/Output Interface
- HD Output : 1xHDMI: Version 2.0 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
- Network Interface : 1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE+ power supply
- Audio Interface : 1-ch:Line In ,3.5mm Audio Interface
- USB : 1 xUSB 3.0, Type-B socket;1 xUSB2.0, Type-A socket
- Communication Interface : 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol : VISCA network use only 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol : VISCA/Pelco-D/Pelco-P
- Power Jack : DC-005/Φ2.0 type (DC IN 12V)
Generic Specification
- Input Voltage : DC 12V/PoE+ 802.3at）
- Current Consumption : 2A (Max)
- Operating Temperature : -10°C ~ 40°C (14°F ~ 104°F)
- Storage Temperature : -40°C ~ 60°C (-40°F ~ 140°F)
- Power Consumption : 18W (Max)
- MTBF>30000h
- Size : 200mm x 150mm x 165mm
- Net Weight : 1.73Kg
