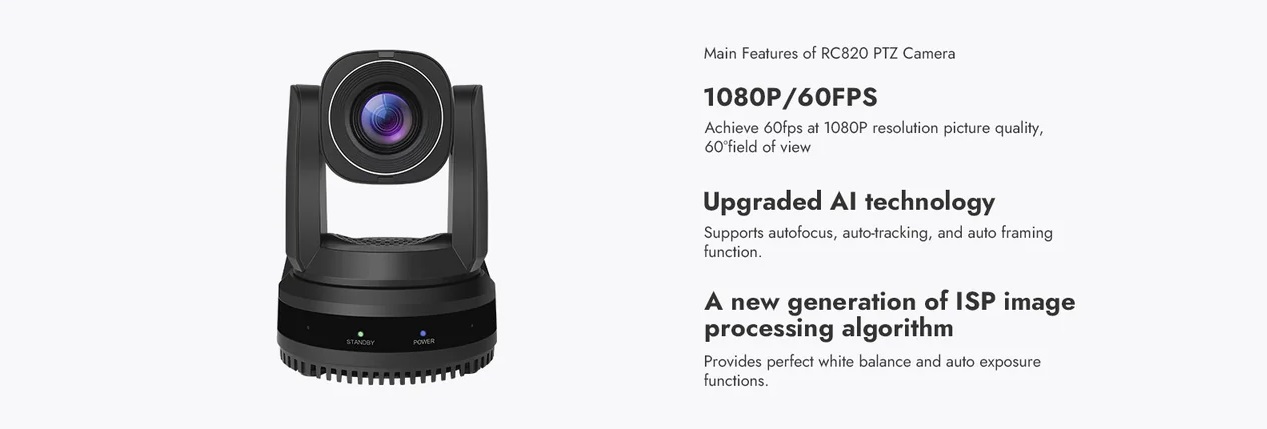

RC820 equipped with a 20x optical zoom lens, which can achieve unparalleled ultra-high-resolution image quality and lossless effects that are closer to vision. Upgraded AI technology enables accurate human tracking and auto framing. The new-generation ISP image processing algorithm and leading auto-focus technology enable the lens to focus quickly, accurately and stably, and the image output performance is significantly improved.
Specifications
Camera
- Video System:1080P60，1080P59.94，1080P50，1080I60，1080I59.94，1080I50，1080P30，1080P29.97，1080P25，720P60，720P59.94，720P50
- Sensor:1/2.8'', CMOS, Effective Pixel
- Scanning Mode:Progressive
- Lens :20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
- Minimal illumination:0.5 Lux @ (F1.8, AGC ON)
- Shutter:1/30s ~ 1/10000s
- White balance:Auto, Manual, One Push, VAR
- Digital Noise Reduction :2D&3D Digital Noise Reduction
- Backlight Compensation :Support
- Video S/N:≥55dB
- Horizontal Angle of View:60.7° ~ 3.36°
- Vertical Angle of View:34.1° ~ 1.89°
- Horizontal Rotation Range:±170°
- Vertical Rotation Range: -30° ~ +90°
- Tilt Speed Range:1.7° ~ 100°/s
- Tilt Speed Range:1.7° ~ 69.9°/s
- H & V Flip:Support
- Image Freezing:Support
- Number of Preset:255
- Preset accuracy:0.1°
USB Features
- Operating System:Windows® 7 (1080p and lower resolution only), Windows 8.1, Windows 10 or higher macOS™ 10.10 or higher Google™ Chromebook™ Version 29.0.1547.70 or higher Linux (need to support UVC)
- Hardware Requirements :2.4 GHz Intel® Core 2 Duo processor or higher 2 GB RAM or higher USB 2.0 interface
- Color System / Compression:YUY2/MJPEG/H.264
- Video Format: Support a variety of video formats with different frame rates and resolutions, up to 1080P60 YUY2 output
- USB Video Communication Protocol:UVC 1.1 or UVC 1.5
- USB Audio:32K sampling rate, support UAC2.0
- UVC PTZ Control:Support
Audio
- Microphone Arrays :Built-in dual microphones, 100Hz to 16KHz frequency response
- LINE IN:Support LINE IN
- Audio Output: Support HDMI, USB, LAN, SDI and other audio output
IPC Features
- Video Coding Standard: H.264
- Video Stream: Main Stream, Sub Stream
- Main Stream Resolution: 1920x1080,1280x720,1024x576,960x540,640x480,640x360
- Sub Stream Resolution: 1280x720,1024x576,720x576, 720x480,720x408,640x360,480x270,320x240,320x180
- Video Bit Rate:32Kbps ~ 102400Kbps
- Bit Rate Type:Variable Rate, Fixed Rate
- Frame Rate:1fps ~ 60fps
- Audio Compression:AAC
- Audio Bit Rate:96Kbps, 128Kbps, 256Kbps
- Support Protocols :NDI, TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast,SRT etc.
Input/output Interface
- USB Interface:1xUSB 3.0
- HDMI&SDI:1xHDMI , 1x3G-SDI
- LAN :1xRJ45 1000M Adaptive Ethernet port
- Audio Interface:Built-in two microphones, support 1xLine In, switchable. 1x Line Out
- RS485&RS232:1x visca in,1x visca out，support 2Pin RS485
Generic Specifications
- Input Voltage: DC 12V
- Input Current: 1A
- Working Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 60°C
- Power Consumption: 12W
- Size: 169mm x 142mm x 164mm
- Net Weight: 1.35Kg
