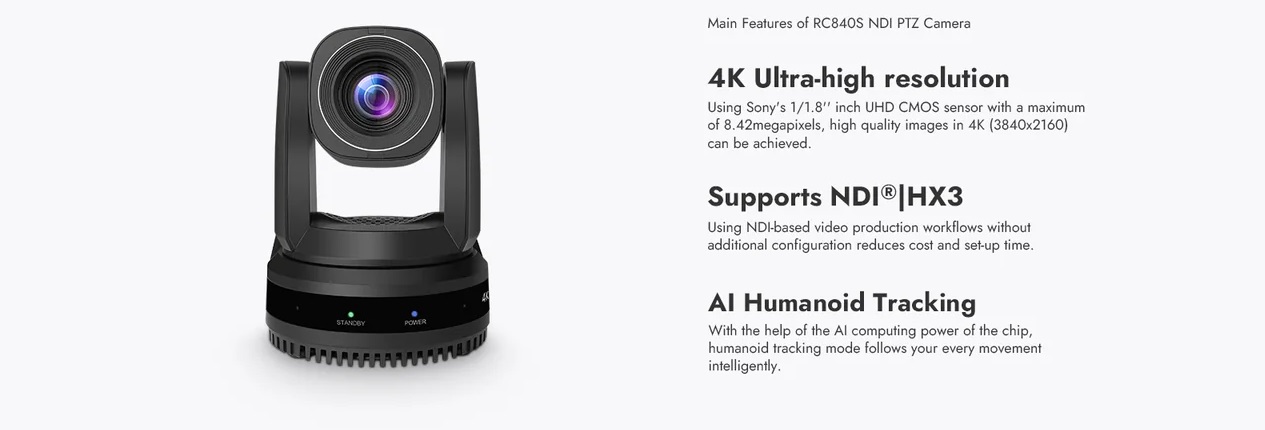

Rocware RC840S UHD Video PTZ Camera has Sony's 1/1.8'' inch CMOS sensor with 4K quality at an impressive 60 fps. This broadcasting-level video camera supports NDI|HX3 （optional）to manage very low latency. 20X optical zoom and AI humanoid Tracking modes to keep the object always still in clear focus. Built with rich and complete interfaces, You can output to HDMI (UHD) or 3G-SDI (HD) with IP and USB 2.0 interfaces simultaneously.
.jpg)
.jpg)
Specifications
Camera
- Video System : HDMI 4K@60fps(Max), 3G-SDI 1080p/60(Max)
- Sensor : 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels
- Scanning Mode : Progressive scanning
- Lens : 20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95
- Digital Zoom : 16x
- Minimal Illumination : 0.5Lux @ (F1.8, AGC ON)
- Shutter : 1/30s ~ 1/10000s
- White Balance : Automatic, indoor, outdoor, one touch, manual，VAR
- Backlight Compensation : Supported
- Digital Noise Reduction : 3D digital noise reduction
- Video S/N : ≥55dB
- Horizontal Angle of View : 60° ~ 3.5°
- Vertical Angle of View : 35.7° ~ 2.0°
- Horizontal Rotation Range : ±170°
- Vertical Rotation Range : -30° ~ +90°
- Pan Speed Range : 1.7° ~ 100°/s
- Tilt Speed Range : 1.7° ~ 69.9
- H & V Flip : Supported
- Image Freeze : Supported
- PoE : Supported
- Number of Preset : 255
- Preset Accuracy :0.1°
USB Features
- Operate System : Windows 7, Windows 8, Windows 10, Windows 11, Mac OS X, Linux, Android
- Color System : YUY2 / H.264 / MJPEG
- Video Format : YUY2 :MAX 1080P@5fps, H.264 AVC:MAX2160P@30fps, MJPEG:MAX 2160P@30fps
- Audio on USB : Supported
- USB Video Communication Protocol : UVC 1.1~1.5
- UVC PTZ : Supported
Network Features
- Video Compression : H.264/MJPEG
- Video Stream : First streaming, second streaming
- Main Stream Resolution : 3840x2160, 1920x1080, 1280x720, 1024x57
- Sub Stream Resolution : 720x480, 320x240
Video Bit Rate : 32kbps~51200kbps (Second Way：32kbps~20480kbps） - Bit Rate Type : Variable bit rate，Fixed bit rate
- Frame Rate : 50Hz: 1fps~50fps, 60Hz:1fps~60fps
- Audio Compression : AAC
- Audio Bit Rate : 96Kbps,128Kbps
- Support protocols : NDI®|HX2, SRT, TCP/IP,HTTP,RTSP, RTMP(s),Onvif,DHCP,Multicast and so on
Input/Output Interface
- HD Output : 1xHDMI: 2.0 Remarks：4KP60 HDMI output only supports YUV420; 1x3G-SDI: BNC type, 800mVp-p, 75Ω , Comply with SMPTE 424m standard.
- Network Interface : 1xRJ45: 10M/100M/1000M Adaptive Ethernet
- Audio Interface : 1-ch , 3.5mm Audio Interface, Line In；1-ch , 3.5mm Audio Interface, Line Out；
- USB : 1-ch, USB2.0, Type-A(Can be configured as Host or Device by software)
- Communication Interface : 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P; 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only; 1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
- RESTORE : Support
- Power Jack : JEITA type (DC IN 12V)
Generic Specification
- Installation Direction : Mounting, Ceiling Mounting
- Tally Lamp : 1PCS (Red and Green)
- Power Indicator : 1PCS(Blue）
- Status Indicator : 1PCS (Green)
- IR Remote Control : Support
- Dial : Support
- Input Voltage : DC 12V /POE+
- Input Cur : 2A（MAX）
- Operating Temperature : 0°C ~ 40°C
- Storage Temperature : -40°C ~ 60°C
- Power Consumption : MAX 18W
- Size : 169mm x 142mm x 175mm
- Net Weight : About 1.5Kg
