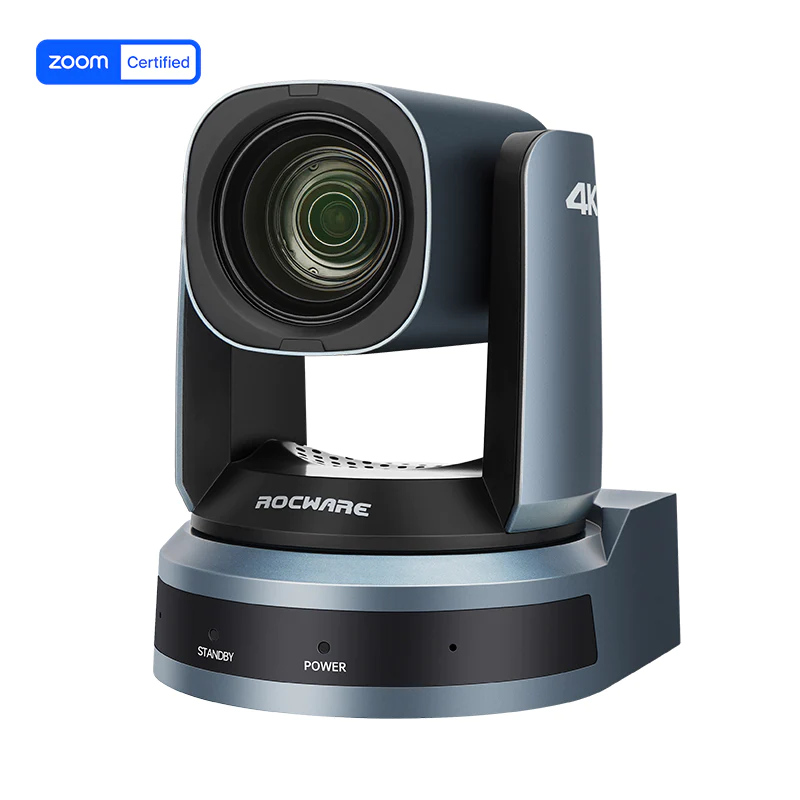

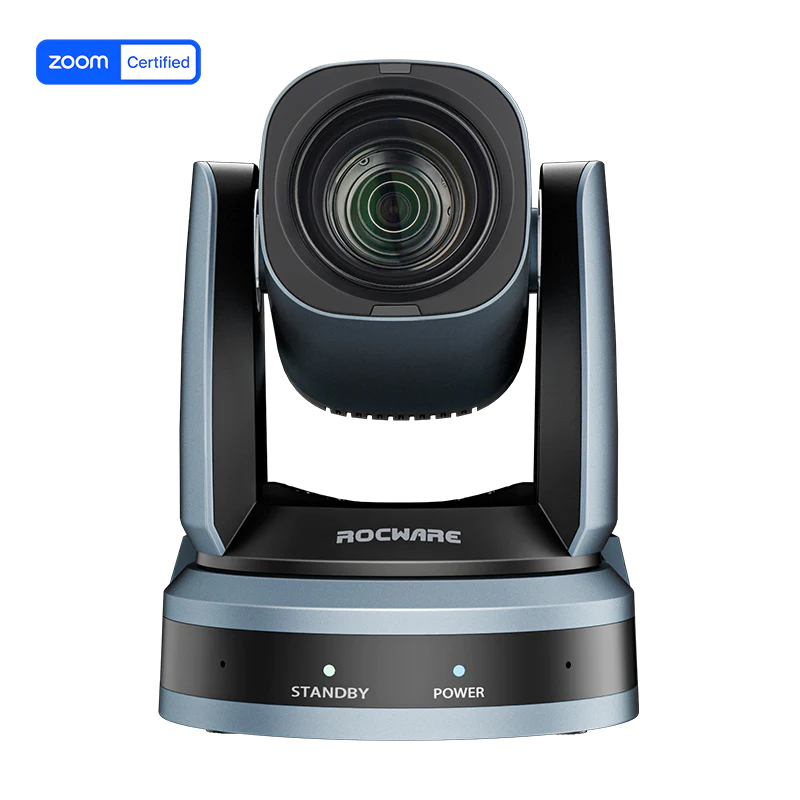

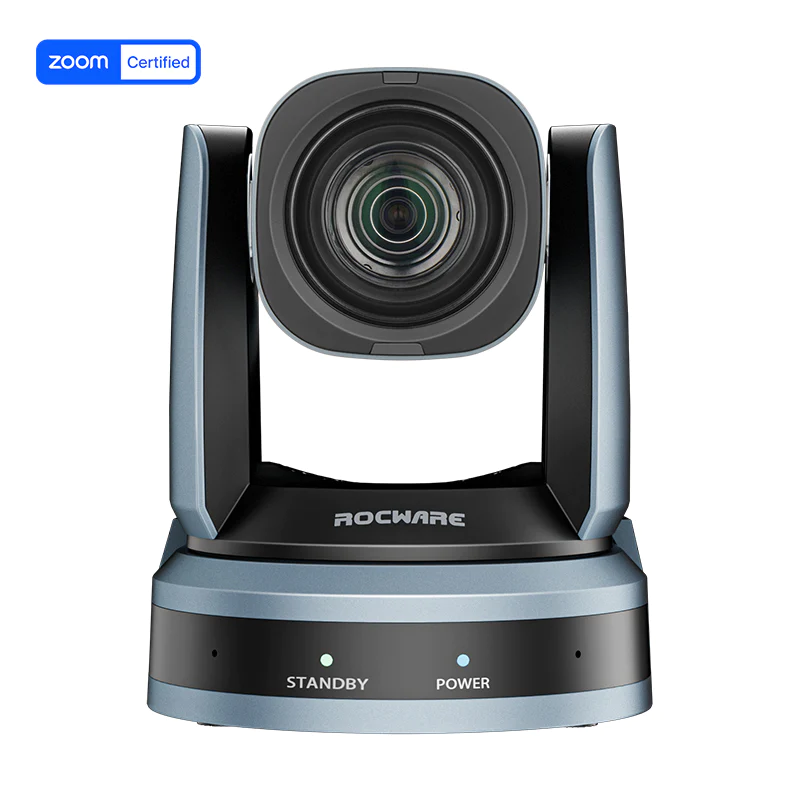

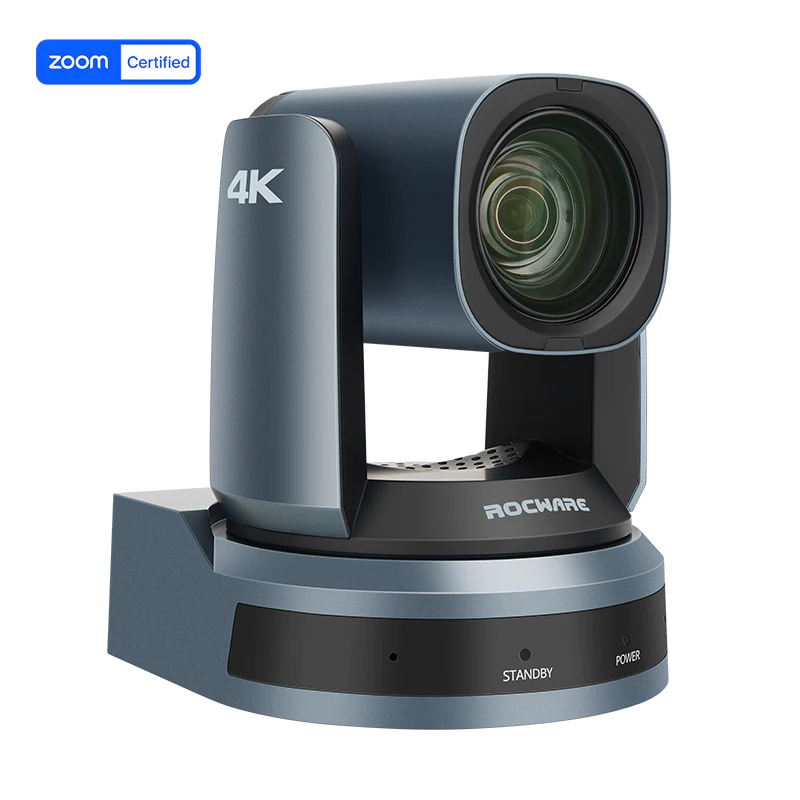

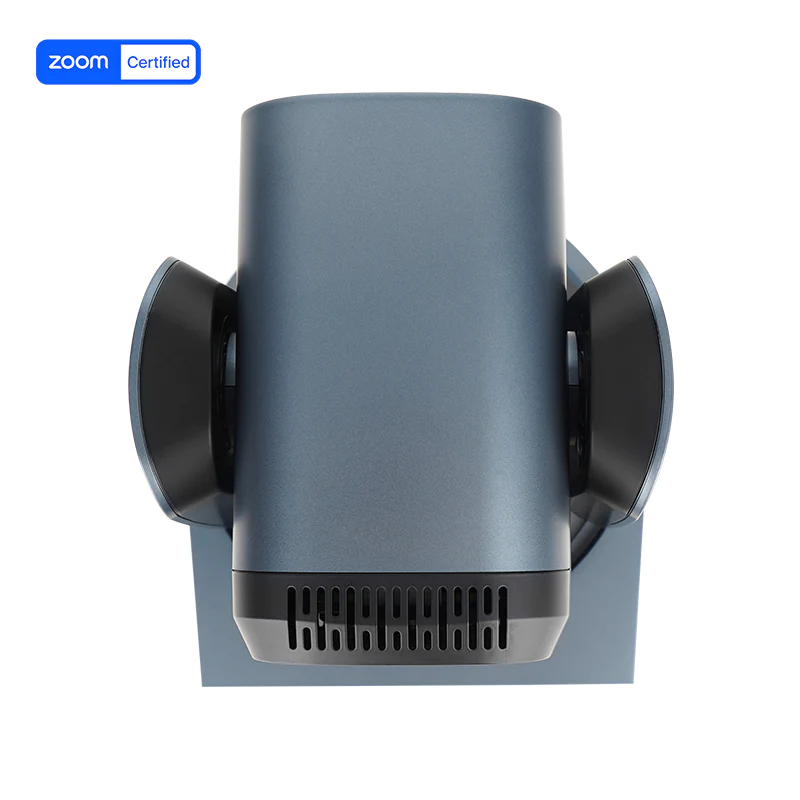

RC841U 4K PTZ Camera 12X Optical Zoom 80.8° Field of View Live Streaming Camera, Conferencing Camera with Auto Framing, Humanoid Tracking

Rocware RC841U 4K UHD Video PTZ Camera has Sony's 1/2.5 inch CMOS sensor with 4K quality at an impressive 30 fps. The horizontal angle is comfortable at 80.8° and has a 12X lossless optical zoom.
Supports AI humanoid tracking and auto-framing so that you can choose to focus on individual or all team members. Everyone has a chance to be on the central stage.
With RM702 USB Cascade Microphones and S22 HiFi Speakers, we recommend you use it for a 60-100㎡ conference room.

4K Ultra HD: Sony 1/2.5'', CMOS, Effective Pixel: 8.51M Lens: Wide - angle lens, horizontal field of up to 80.8°, 12x, f 3.47mm ~ 41.65mm, F 1.84 ~ F3.72 PTZ: Horizontal Rotation Range: ±170°, Vertical Rotation Range: -30°~+90°

Exclusive customized high-quality true 8 million ultra-high-resolution ultra-wide-angle lens, horizontal field of view up to 80.8°,can cover the meeting scene better.

Auto framing  RC841U can accurately obtain the number and distribution of participants through face detection, intelligently control PTZ cameras to capture all participants in the screen, and adjust to the best screen

Built-in NNE hardware unit, with deep learning technology and extracting target features, no matter where the face is facing, it can achieve smooth tracking

Specification

Camera

·       Signal: HDMI: 4KP30fps,4KP25,1080P30,1080P25

·       Sensor: 1/2.5", CMOS,

·       effective pixels: 8.51 million

·       Scanning method: Line by line

·       lens: 12x, f = 3.47mm ~41.65mm, F 1.84 ~ F 3.72

·       Digital zoom: 16x

·       Minimum illumination: 0.5Lux @ (F1.8, AGC ON)

·       shutter: 1/30s ~ 1/10000s

·       White balance: Automatic, indoor, outdoor, one-touch, manual, specify the color temperature

·       Backlight compensation: support

·       Digital noise reduction: 2D & 3D digital noise reduction

·       Signal-to-noise ratio: ≥55dB

·       Horizontal field of view: 80.8° ~ 7.5°

·       Vertical field of view: 49.9° ~ 4.3°

·       Pan range: ±170°

·       Tilt range: -30° ~ +90°

·       Pan speed range: 2.7° ~ 35.7°/s

·       Tilt speed range: 2.7° ~ 31.5°/s

·       Flip horizontally, vertically: support

·       Image freezes: support

·       Number of preset: 255

·       Preset accuracy: 0.1°

USB features

·       OS Support: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android

·       Color space/compression： YUY2/ MJPEG/ H.264

·       Video format: YUY2 (iso model): Max: 1080P@30fps MJPEG: Max: 2160P@30fps H.264 AVC: Max: 2160P@30fps H.264 SVC: Max: 2160P@30fps

·       USB audio: support

·       USB video communication: UVC 1.1~1.5

·       UVC PTZ control: support

IPC features

·       Video encoding standards: H.264/MJEPG

·       Video stream: The first stream, the second stream

·       The first stream resolution: 3840x2160,1920x1080,1280x720,1024x576,960x540,640x480,640x360

·       The second stream resolution: 1920x1080,1280x720,1024x576,720x576, 720x480,720x408,640x360,480x270,320x240,320x180

·       Video bit rate: 32Kbps ~ 102400Kbps

·       Bit rate control: Variable bit rate, fixed bit rate

·       Frame rate: 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps

·       Audio compression standards: AAC

·       Audio bit rate: 96Kbps, 128Kbps, 256Kbps

·       Support Agreement: TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, multicast

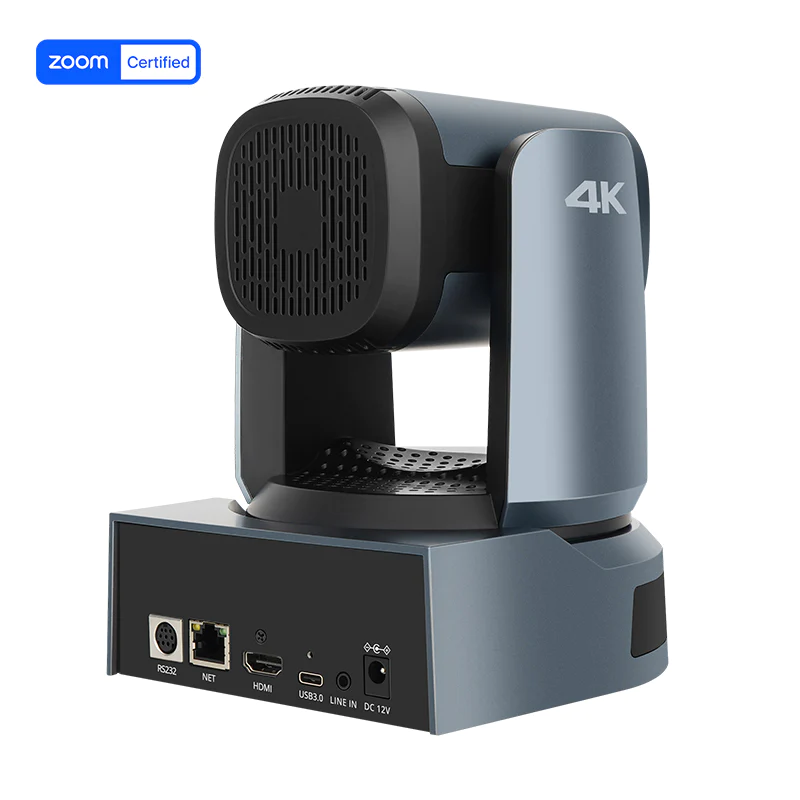

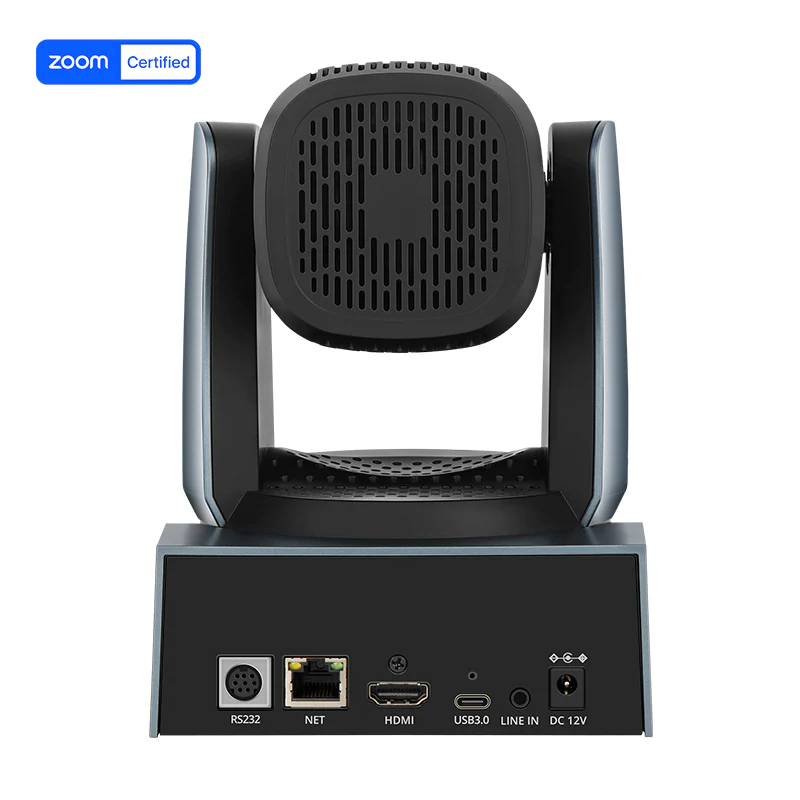

I/O

·       USB: USB 3.0, TypeC x1

·       HD Output: HDMI 1.4b x1

·       Network interface: RJ45：10M/100M x1

·       Audio interface: Line In, 3.5mm x1

·       Communication interface: RS232 In x1

·       Power connector: DC 12V / PoE(802.3af)

General specifications

·       Input voltage: DC 12V / PoE(802.3af)

·       Input current: 12V 1A

·       Operating temperature: -10°C ~ 40°C

·       Storage temperature: -40°C ~ 60°C

·       Power consumption: 12W

·       Size: 142mm x 152mm x 176mm

·      Net weight: 1.5 kg
